HL10100240
High Precision Automatic Checkweigher & Sorting Machine (±0.01g)
Automatic weighing and left/right sorting system with ±0.01g accuracy. Uses belt forward/reverse control to separate OK and NG products.
Suitable for conveyor lines, vertical packaging machines, and manual feeding.
Features: high precision, compact design, detects under/overweight and missing parts.
Model No.:
HL10100240
Case Studies
Machine Information
Specifications - HL10100240
Item | Specification |
Model | HL10200240 |
Speed | 0-45 pcs/min |
Accuracy | ±0.01g |
Max load | 200g |
OK/NG Reject Mode | Left/Right Sorting |
Weigh Module L*W*H(mm) | 100mm*240mm*200~400mm |

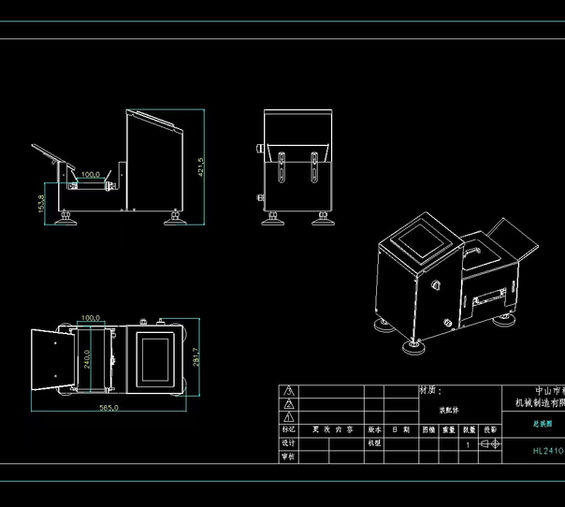

Machine size L*W*H(mm) | 565mm*281mm*421mm |
Air Supply | No air Supply needed |
Net Weight | 27kg |
Gross weight (including carton/box) | 35kg |
Frame material | 304 stainless steel |
Languages supported | English and local language |
INPUT | 100-240V~50/60Hz |
Warranty | 3-Year warranty |
Signal Output Interfaces | RS232 、RS485 、Ethernet Port |
Touch Screen Size | 7-inch |
Origin | Made in China |
Why Choose SMASORT
Smart Reporting
Simplify data management and compliance with our Reporting Package; delivering real-time insights for better decisions and improved production quality.
Preset Action at Qualified Quantity
When the preset quantity of qualified products is reached, the system supports:
Machine stop with alarm
Cyclic interception
Custom Solutions Available
Non-standard customization is available, even for a single machine, to meet different application requirements.
